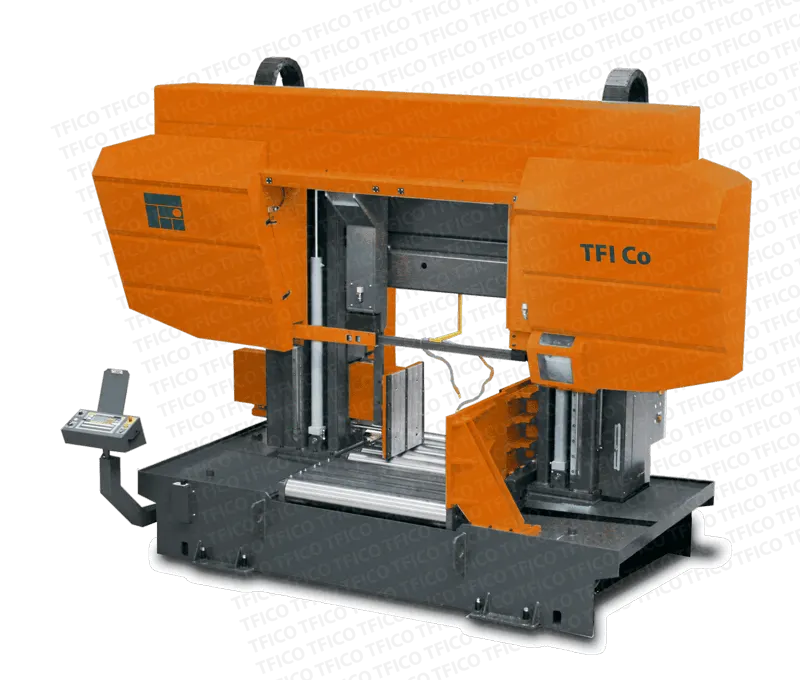

Bandsaw Machine CNC Model – Rotatory – TFI-R-440
Introducing the TFI-R-440 bandsaw machine, the perfect solution for all your metal cutting needs. With a maximum cutting diameter of Φ440mm for circular rods and square bars of 620*440mm at a 90-degree angle, this machine can handle even the toughest and thickest materials with ease. 🔪💪
With a blade speed range of 20-90m/min controlled by an inverter, you can be sure that you’re getting accurate and precise cuts every time. No matter what your cutting needs are, the TFI-R-440 has you covered. ⏭️👌
The blade size of 1.1*34*5200 mm is perfect for handling tough materials with ease, and the motor output of 3kw ensures that the machine has enough power to handle even the most challenging cuts. This means that you can rely on the TFI-R-440 to get the job done quickly and efficiently. 💪💨
With a hydraulic pressure of 0.75kw and a coolant pump of 0.07kw, the TFI-R-440 is designed to operate at peak performance. This means that your materials are always being cut smoothly and without any issues. 🔧👍
The table height of 805mm is ideal for working with the TFI-R-440, as it ensures that you won’t have to bend or stoop to make cuts. This is essential for avoiding back pain and discomfort when working with heavy materials. 💪👩🔧
At a machine size of 2900x1200x1450mm, the TFI-R-440 is compact and easy to move around, making it ideal for workshops of all sizes. And with a hydraulic vice clamping and manual blade tensioning form, you can be sure that your materials are always securely held in place during the cutting process. 🔩👍
The TFI-R-440’s hydraulic step-less feeding cut adjust way and automatic feeding way make it easy to adjust the feed rate to ensure that you’re getting the right cuts every time. And with wind cooling and hydraulic cooling way, you can be sure that this machine is easy to use and maintain. 💦👍
In conclusion, if you’re looking for a reliable and efficient bandsaw machine for your metal cutting needs, look no further than the TFI-R-440. With its advanced features and high-quality construction, this machine is perfect for a wide variety of materials and thicknesses. And with its ease of use and maintenance, you can be sure that the TFI-R-440 will be a valuable addition to your workshop for years to come. 🔧👨🏭👩🏭
Technical Parameter:
| Model | TFI-R-440 | |
| Max. Cutting Diameter at different angles | 90° Φ440mm ■:620*440 45° Φ400mm ■:400*400 60° Φ280mm ■:280*280 Angle rotation: +60°~~ -60° |
mm |
| Blade Speed | 20-90by Inverter | m/min |
| Blade Size | 1.1*34*5200 | mm |
| Motor Output | 3 | kw |
| Hydraulic Pressure | 0.75 | kw |
| Coolant Pump | 0.07 | kw |
| Table height | 805 | mm |
| Machine Size(L*W*H) | 2900*1200*1450 | mm |
| Net Weight | 1400 | kg |
| Vice clamping | Hydraulic | |
| Blade tensioning form | Maunal | |
| Feeding cut adjust way | Hydraulic stepless | |
| Feeding way | Automatic | |
| Hydraulic cooling way | Wind cooling | |
| Voltage | 380V 50HZ 3Phase | |
The Bandsaw Machine CNC Model – Rotatory – TFI-R-440 from TFI Co., Manufacturer of Steel Blades Since 1965, delivers a precise, high-capacity metal cutting solution with maximum round capacity of Φ440mm, square capacity of 620*440mm at 90 degrees, inverter-controlled blade speeds of 20-90m/min and a 1.1*34*5200 mm blade, enabling UAE and GCC metalworking factories, fabrication workshops and procurement teams to evaluate specifications, match the machine to their industrial requirements and generate targeted quotation or ordering enquiries that integrate effectively with bi-metal bandsaw blades and tooth pitch selection for reliable performance.
Need to Know
- Metal cutting bandsaw machines deliver maximum diameters of 440 millimeters for circular rods.
- Manufacturer of Steel Blades Since 1965 powers machines with 3 kilowatt motors for efficiency.
- Fabrication workshops process 620 by 440 millimeter square bars at 90 degree angles.
- Maintenance teams avoid discomfort using 805 millimeter table heights on CNC models.
- Industrial procurement departments request quotations for rotatory bandsaw machines and blade solutions.
Dimensional Data
| Product Type | CNC Rotatory Bandsaw Machine |
|---|---|
| Model | TFI-R-440 |
| Application | Metal cutting applications using bandsaw blades |
| Maximum Cutting Diameter | Φ440 mm |
| Maximum Cutting Capacity | 620 mm × 440 mm at 90° |
| Blade Speed Range | 20-90 m/min |
| Blade Size | 1.1 mm × 34 mm × 5200 mm |
| Main Motor Output | 3 kW |
| Hydraulic System | 0.75 kW |
| Coolant Pump | 0.07 kW |
| Table Height | 805 mm |
| Compatible With | Bi metal bandsaw blades, metal cutting bandsaw blades |
| Tooth Pitch | Specify on order |
| Manufacturer | TFI Co., Manufacturer of Steel Blades Since 1965 |
Sectors We Serve
- Metal Cutting Use Case: The TFI-R-440 delivers precise cuts on circular rods up to Φ440mm and square bars of 620*440mm at 90 degrees for heavy metal fabrication in UAE workshops.
- Fabrication Workshops: Fabrication workshops across the GCC rely on the 20-90m/min inverter-controlled blade speed and 1.1*34*5200 mm blade size for accurate processing of tough materials.
- Maintenance Teams: Maintenance teams in metalworking factories utilise the 3kw motor output and hydraulic pressure system to sustain continuous operation with bi metal bandsaw blades.
- Industrial Procurement: Industrial procurement departments in the UAE and GCC source the TFI-R-440 CNC rotatory model to equip facilities requiring reliable performance on thickest metals using appropriate tooth pitches.
- Precision Cutting Applications: Precision cutting applications in export-oriented industrial markets employ the 805mm table height and coolant pump to maintain efficiency while reducing operator strain during extended runs.
- Bi-Metal Bandsaw Use: Metalworking factories select compatible bi metal bandsaw blades and tooth pitches for the TFI-R-440 to achieve optimal results on diverse metal sections with M42 grade performance.
- GCC Production Environments: TFI Co., manufacturer of steel blades since 1965, supports GCC production environments where the TFI-R-440 handles high-volume metal cutting with 0.75kw hydraulic and 0.07kw coolant systems.
Frequently Asked Questions
What is the TFI-R-440 bandsaw machine?
The TFI-R-440 is a CNC rotatory bandsaw machine designed for demanding metal cutting applications. It delivers a maximum cutting diameter of 440mm for circular rods and 620x440mm for square bars at 90 degrees. Equipped with a 3kW motor and 1.1x34x5200mm blade, it ensures reliable performance. As Manufacturer of Steel Blades Since 1965, TFI Co. supports UAE and GCC industries with this robust solution.
How is blade speed controlled on the TFI-R-440?
Blade speed on the TFI-R-440 is controlled by an inverter allowing precise adjustment from 20 to 90m per minute. This variable range enables operators to match cutting conditions to material hardness and thickness, delivering accurate results with minimal vibration. The system integrates with the hydraulic and coolant functions for consistent performance in professional metalworking environments.
Can the TFI-R-440 cut both round and square materials?
Yes, the TFI-R-440 efficiently cuts circular rods up to 440mm diameter and square bars measuring 620x440mm at 90 degrees. Its heavy-duty 3kW motor and optimised blade size allow it to process even the toughest metals smoothly. The 805mm table height further supports safe, ergonomic operation in fabrication workshops across the UAE and GCC.
Does the TFI-R-440 include hydraulic and coolant systems?
Yes, the TFI-R-440 features a 0.75kW hydraulic system and 0.07kW coolant pump. These integrated systems maintain consistent pressure and temperature during cuts, preventing blade wear and material distortion. Combined with the inverter-driven blade speed, they ensure peak efficiency when processing thick sections in industrial metal cutting applications.
Which blade size does the TFI-R-440 use?
The TFI-R-440 is engineered for a 1.1x34x5200mm blade. This specification pairs with the 20-90m/min inverter-controlled speed and 3kW motor to deliver powerful, precise cutting of tough metals. The selected dimensions support high-performance operation while maintaining cut accuracy required by metalworking factories and maintenance teams in the GCC.
How can I get a quote for the TFI-R-440 for metal cutting in the UAE?
To proceed with the TFI-R-440 CNC rotatory model featuring 440mm cutting diameter and robust power for tough metals, contact us via Chat for the fastest response. Alternatively, complete the online form or call our team. We will provide tailored guidance specific to your UAE or GCC workshop requirements as Manufacturer of Steel Blades Since 1965.
TFI Co. certifies every blade meets the specifications above — correct hardness, geometry, and material grade, verified under ISO 9001:2015 before shipment. Achieving the stated performance figures also requires correct installation, operation within rated parameters, and scheduled maintenance. Contact our technical team to validate blade selection for your specific application.
We specify and deliver precise, high-capacity metal cutting solutions for industrial applications.
- Presenting the TFI-R-440 with maximum round capacity of 440mm, square capacity of 620 x 440mm at 90 degrees, inverter-controlled blade speeds of 20-90 m/min and blade size of 1.1 x 34 x 5200 mm for heavy metal fabrication workshops in the UAE and GCC.
- Focused on generating quotation and ordering enquiries for bi-metal bandsaw blades and related cutting solutions while maintaining a specification-led approach.
- Acknowledging that capacities, speeds and results may vary by context, configuration and application.
