Get precision and power with the TFI-R-320-S metal working bandsaw machine. Hydraulic clamping and stepless feeding for accuracy. Contact us for more!
Overview

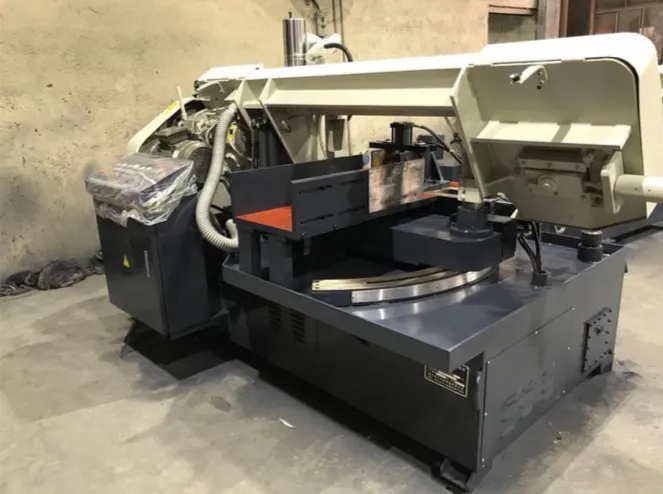

Looking for a powerful, efficient and reliable metal working bandsaw machine? Look no further than the TFI-R-320-S! With a maximum cutting diameter of Φ320mm for round bars and ■320*320mm for square bars at 90 degrees, this machine is perfect for a wide range of cutting needs.
The blade speed is variable, with speeds of 22, 40, and 60 m/min to choose from, ensuring you can adjust the machine to suit your specific cutting requirements. The blade size is also impressive at 1.1mm thickness, 34mm width and 4470mm length, providing precision and accuracy in every cut.
Technical Parameters
| Model | TFI-R-320-S |
|---|---|
| Max. Cutting Diameter, 0/90° | Φ320mm, ■ 320*320 mm |
| Max. Cutting Diameter, 45° | Φ320mm, ■ 320*320 mm |
| Max. Cutting Diameter, 60° | Φ150mm, ■ 150*150 mm |
| Blade Speed | 22, 40, 60 m/min |
| Blade Size | 1.1*34*4470 mm |
| Motor Output | 4 kW |
| Hydraulic Pressure | 0.37 kW |
| Coolant Pump | 0.04 kW |
| Table Height | 600 mm |
| Machine Size (L*W*H) | 2450*1550*1500 mm |
| Net Weight | 1450 kg |
| Vice Clamping | Hydraulic |
| Blade Tensioning Form | Manual |
| Feeding Cut Adjust Way | Hydraulic stepless |
| Feeding Way | Manual |
| Hydraulic Cooling Way | Wind cooling |
Technical Parameters
- Model
- TFI-R-320-S
- Max. Cutting Diameter, 0/90°
- Φ320mm, ■ 320*320 mm
- Max. Cutting Diameter, 45°
- Φ320mm, ■ 320*320 mm
- Max. Cutting Diameter, 60°
- Φ150mm, ■ 150*150 mm
- Blade Speed
- 22, 40, 60 m/min
- Blade Size
- 1.1*34*4470 mm
- Motor Output
- 4 kW
- Hydraulic Pressure
- 0.37 kW
- Coolant Pump
- 0.04 kW
- Table Height
- 600 mm
- Machine Size (L*W*H)
- 2450*1550*1500 mm
- Net Weight
- 1450 kg
- Vice Clamping
- Hydraulic
- Blade Tensioning Form
- Manual
- Feeding Cut Adjust Way
- Hydraulic stepless
- Feeding Way
- Manual
- Hydraulic Cooling Way
- Wind cooling
Features
Power and efficiency
This bandsaw machine is equipped with a powerful 4 kW motor output, providing the necessary power to handle even the toughest cutting jobs. The hydraulic pressure is 0.37 kW and the coolant pump is 0.04 kW, making this machine highly efficient and cost-effective to run. The table height is set at a comfortable 600mm, allowing for easy operation and reducing operator fatigue. The machine's size is also compact, measuring 2450mm in length, 1550mm in width and 1500mm in height, making it easy to fit into any workspace.
Clamping and feeding

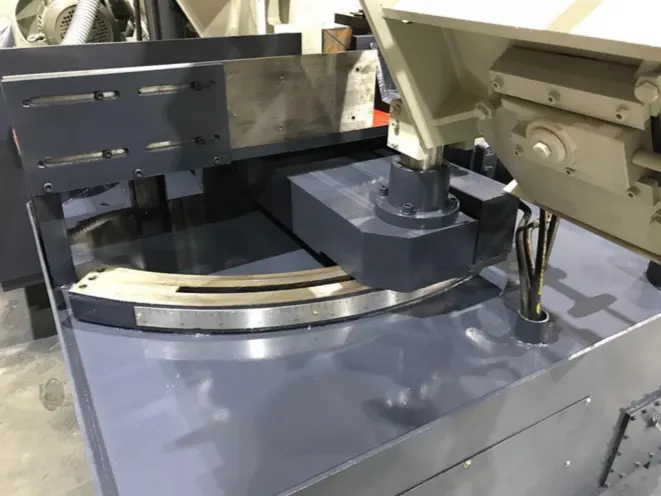

The TFI-R-320-S also features hydraulic vice clamping, ensuring secure and accurate clamping of workpieces during cutting. The blade tensioning form is manual, providing easy and reliable tensioning of the blade. The feeding cut adjust way is hydraulic and stepless, ensuring precise feeding and cutting control. The feeding way is manual, while the hydraulic cooling way is wind cooling, making this machine simple to use and maintain.
Order the TFI-R-320-S
If you have any questions about the TFI-R-320-S or would like more information, please do not hesitate to contact us. Our friendly and knowledgeable team is always happy to help! We appreciate scheduled orders, favour planned maintenance of blades and offer good prices for bulk orders.
